Sizing

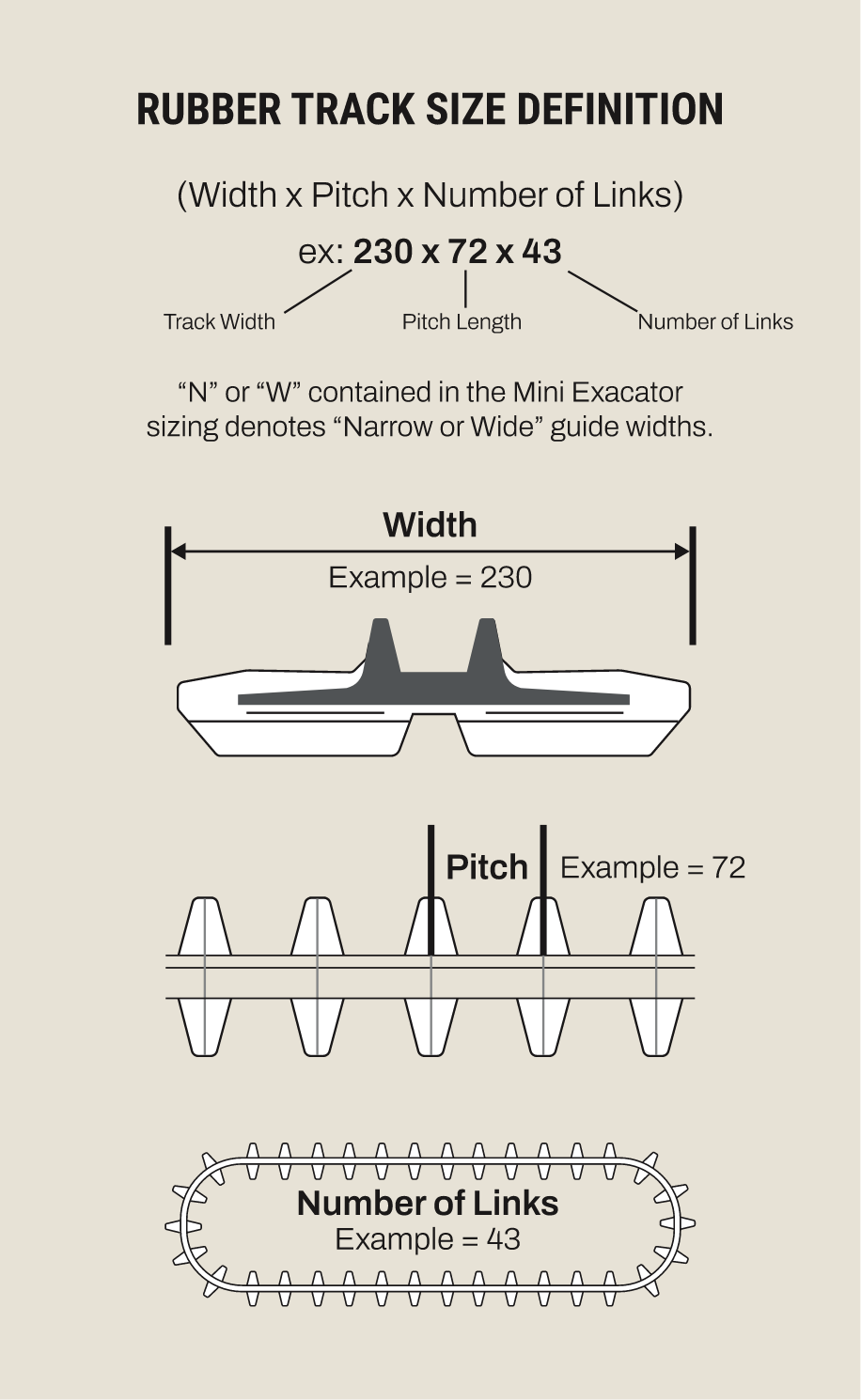

Rubber track sizes are determined using a specific format:
(Width x Pitch x Number of Links)
1. Width: This is the measurement of the track’s width in millimetres. In the example 230 x 72 x 43, the width is 230 mm.
2. Pitch: This is the distance between the centres of two consecutive links in millimetres. This measurement is essential for compatibility with the sprockets that drive the track. In the example above, the pitch length is 72 mm.
3. Number of Links: This refers to the total number of drive lugs or links around the entire track. Counting these links ensures you get the correct length of track for your equipment. In the example above there are 43 links.
Warranty
This warranty is to guarantee the quality of every NOVA rubber track sold. The warranty is valid for 24 months of service from invoice date and ensures the product to be free from defect in materials or workmanship for the duration stated below:
Skid Steer/Compact Track Loader:
Skid Steer/CTL rubber tracks are covered for a period of 24 months.
The first 12 months are replacement warranty and the remaining 12 months are pro-rated.
Mini Excavator:
Mini Excavator rubber tracks are covered for a period of 24 months.
The first 12 months are replacement warranty and the remaining 12 months are pro-rated.
NOVA Rubber tracks warranty excludes labour, transportation and improperly installed tracks.
If within the 24 months from original date of purchase the rubber track fails in service due to defect in material or workmanship, the purchaser must contact CRT with the following information:
• Invoice documentation as validation of the warranty coverage date range.
• Part#
• Description of the defective part.
• Pictures of the defective part.
It is not necessary to send defective product back to us unless otherwise directed
Core Structure
Forged Metal Cores
The metal cores created from forged steel (not cast), guarantee solid performance of the metal core. Special adhesive treatment is used to firmly bond the metal core to the rubber. More weight doesn’t mean a better rubber track. The weight most likely comes from very heavy-cast metal cores. The forgings we use, allow less overall weight and increase fuel economy.
Rubber Compound
Merging natural and synthetic rubber produce superior rubber tracks. Natural rubber compounds provide flexibility and strength. Whereas synthetic rubber adds reliability through thermal stability and resistance to oils. It’s an ideal blend, that is good for its anti-abrasive properties as well as flexible weather capabilities.

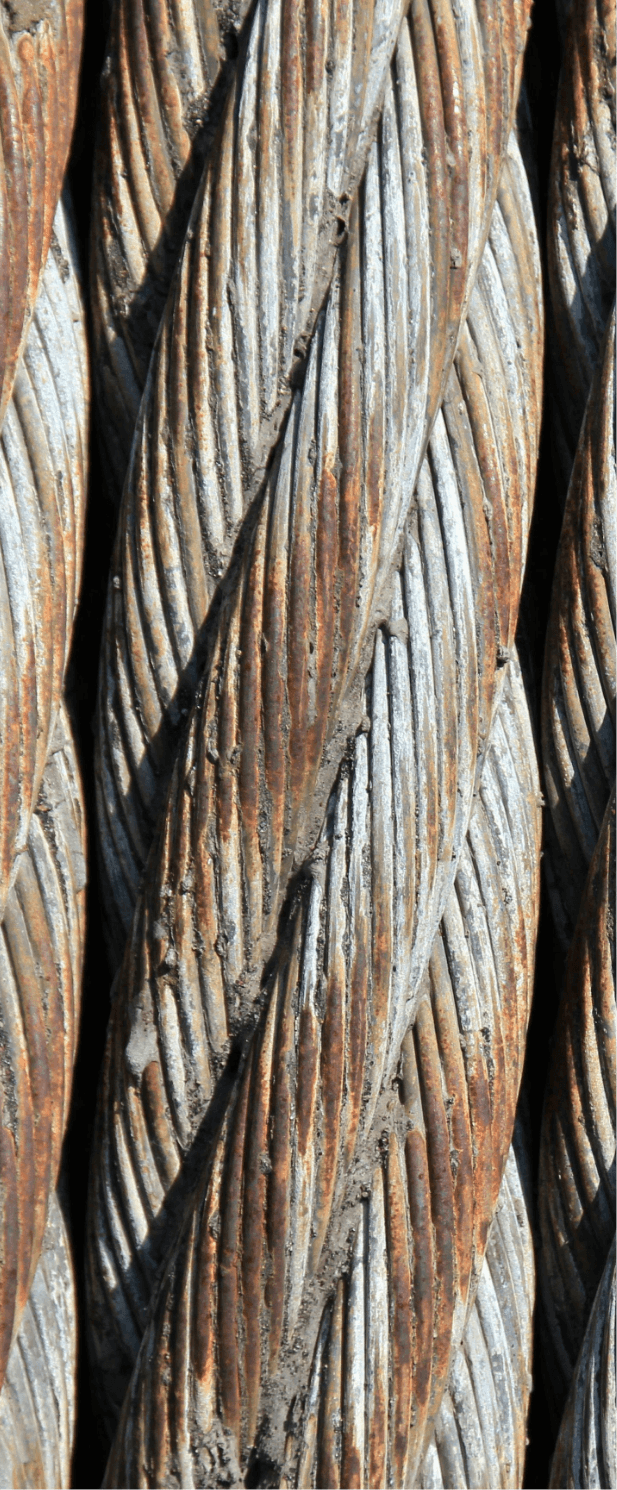

Steel Cords
Our rubber tracks use continuous high-strength steel cords, making a robust structure. Special consideration is paid to both the machine and load weight, when calculating the number of steel cords in the core.
